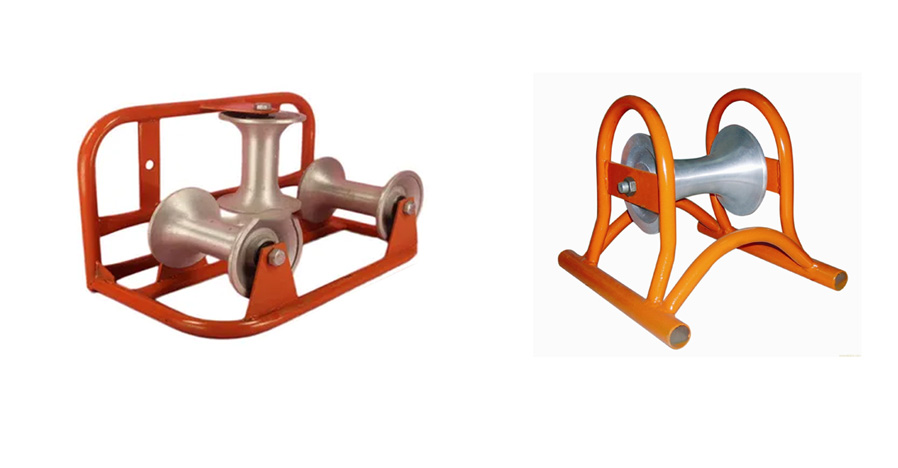

Straight Cable Roller/ Triple Cable Roller
Straight Cable Rollers are designed to support and guide cables during straight‑line installations, helping ensure smooth and controlled cable laying in trenches, ducts, and open pathways. They are an essential tool for reducing installation effort and protecting cables during pulling operations.
Featuring a smooth, heavy‑duty roller, these cable rollers significantly reduce friction, allowing cables to move freely while preventing abrasion, kinks, or surface damage. Their robust construction ensures reliable performance even under heavy cable loads.
Straight cable rollers are ideal for underground cable laying, utility infrastructure projects, power distribution, and industrial cable installations. Durable, easy to position, and highly efficient, they help improve installation speed while maintaining cable integrity and safety on site.
Technical specifications section
| Cable Lying |
| Straight Cable Roller |
| Name |
Material |
Rollers |
Bearing Type |
Finish |
Mount Type |
Weight |
Dimensions (L x W x H) |
Cable Capacity |
| Straight Cable Roller |
Heavy duty steel construction |
110mm waited steel roller* |
Sealed roller bearing fitted |
Bright zinc plated |
Universal link pin mount positions |
3.8Kg |
30cm x 22.5cm x 22.5cm** |
130mm diameter |
| Cable Lying |
| Triple Corner Cable Roller |
| Name |
Material |
Rollers |
Bearing Type |
Finish |
Mount Type |
Weight |
Dimensions (L x W x H) |
Cable Capacity |
Carrying Load |
| Triple Corner Cable Roller |
Heavy duty steel construction |
3 x 110mm diameter large waisted steel rollers |
Sealed roller bearing fitted |
zinc plated |
Universal link pin mount positions |
8.5Kg |
410mm x 320mm x 295mm |
Up to 155mm |
300Kg |
